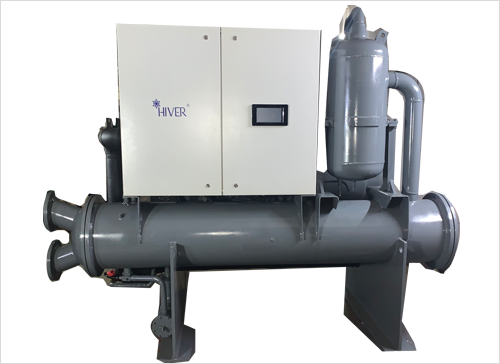

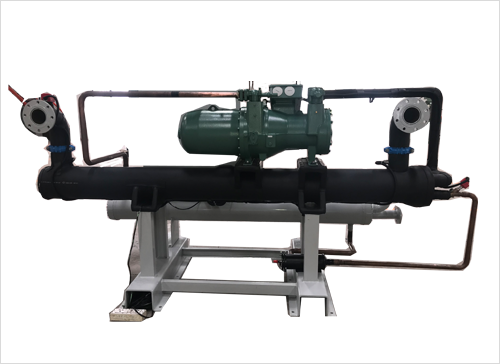

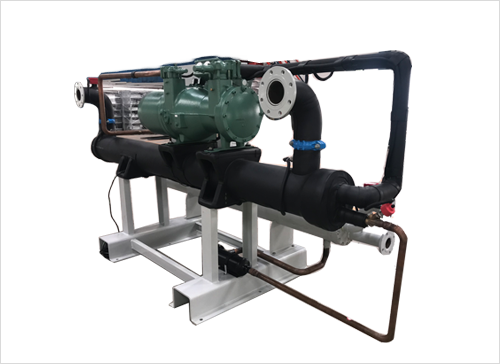

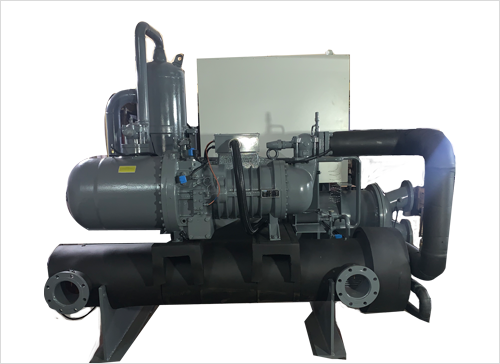

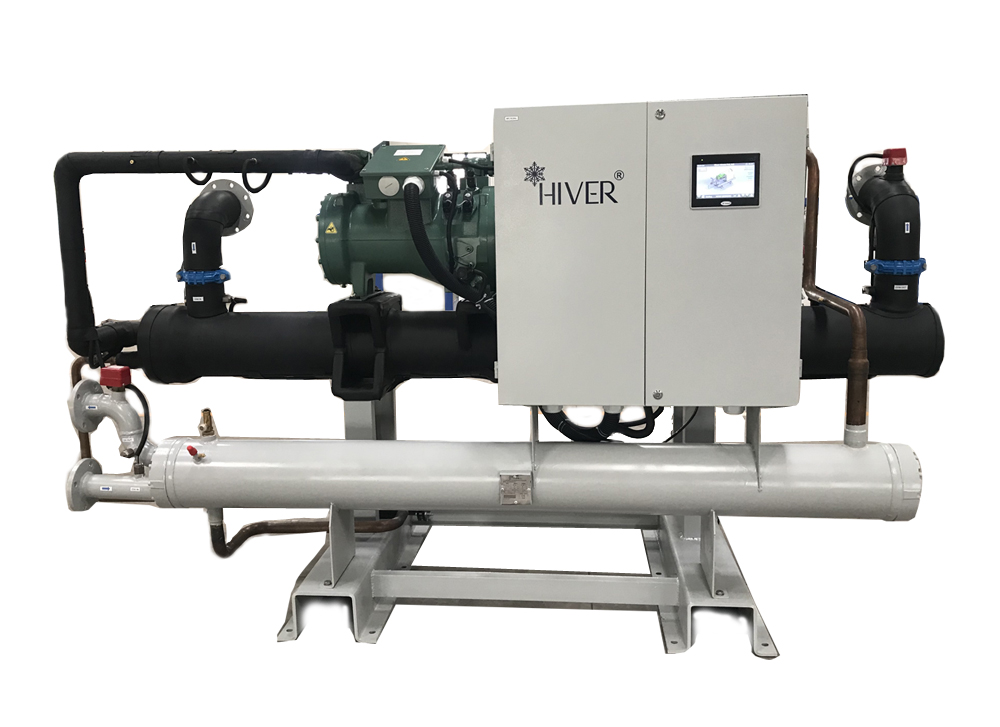

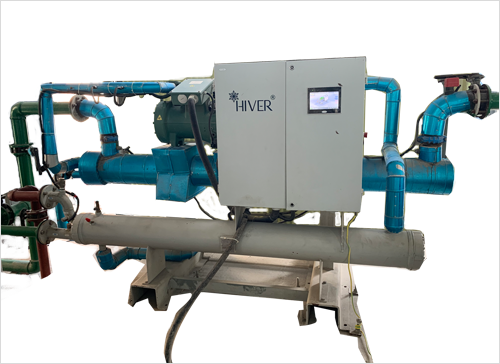

Hiver offers a variety of water-cooled screw chillers for a wide range of cooling capacities from 30 tons to 400 tons comfort and process cooling applications with 20 deg.C to minus 10 degC temperature, medium GWP HFCs R134a refrigerant options.

Our water-cooled screw chillers can reduce your total cost of ownership because they are engineering for lower life cycle costs and reliability through design simplicity. These systems are popular in many commercial & industrial applications such as hotels, offices, hospitals & heavy industries, etc. due to their distinct advantage of multiple refrigeration circuits with semi hermetic screw compressors, compactness and service-friendliness.

Our compressor technology is direct drive, low speed (3600 rpm) with only one rotating parts for high reliability and efficiency. Optimized compressor parts profiles are designed specifically for chilled water & brine applications to optimize full and part-load efficiency. Our 'H Smart' fully automatic PLC based Controller provides greater reliability through a proactive control strategy, safety functions with simple diagnostics and easy interface with any building automation / energy management using RS485 or Ethernet / LAN connectivity. Hiver water-cooled screw chillers are the right choice for right temperature control in virtually any application.

These chillers comprise of DX or Flooded Evaporator, shell & tube condenser, electronic expansion valve and multiple semi-hermetic screw compressors with VFD options. Electronic expansion valves are used to maintain precise flow of refrigerant to evaporator under both full load and part load operation of compressor. Exv can close positively and stop any liquid flood back to compressor.

Models

  • Single Compressor Series : WE1QP3XX
  • Dual Compressor Series : WE2QP3XX
  • Multiple Compressor Series : WE4QP3XX

Applications :

  • Comfort Air-Conditioning
  • Chemical & Pharmaceuticals
  • Engineering & Industrial
  • Commercial & Institutional
  • Hospitals & Hospitality
  • Telecommunications
  • Laser Technology
  • Welding Engineering
  • Aeronautical Testing Facility
  • Defense Laboratory Testing facility
  • Computer Chip Manufacturing
  • Medical Process
  • Blow Mold Machines
  • Injection Molding Machines
  • Plastics Processing
  • Electroplating Industry
  • Laboratory Equipments
  • Food and Beverage Industry
  • Food Process Industry
  • Anodizing Plants
  • Dye and Pigment Manufacturing
  • Plasma Spray Machines
  • Induction Hardening Machine
  • Foundries

Features :

  • Superior Reliability
  • High Energy Efficiency
  • Long Equipment Life
  • Variable frequency drive option available
  • Provides user friendly interface with graphical display
  • Clean Energy & Intelligent Managements
  • Solution for Energy Saving Equipment's
  • Easy Interface with BMS through protocols
  • Ozone friendly refrigerant HFC134a
  • Highly reliable design with best class COP
  • Equipped with advanced 'H-Smart' fully automatic PLC based Controller with remote operations and data logging facilities
  • Stepless capacity control from 25% to 100% adapting precisely to varying process loads
  • Temperature range can be universal i.e. 20 deg.C to minus 10 degC with brine
  • Efficient lubrication, even in the event of power failure
  • Anti-freeze safety and water flow switches.
  • World-class safety controllers for equipment's & compressors
  • Custom built machine enquiries are also entertained
  • Custom built machine enquiries are also entertained
  • 100% functionally tested
  • The equipment is designed and manufactured in compliance with superior designing and manufacturing standards.
  • Equipment extended warranty options are available up to 10 yrs.
  • Site support with Amc options are available for entire life of equipment's.
